Automatic Disposable Non Woven Surgical Apron Protective Clothing Making Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | RT |
| Certification: | CE |
| Model Number: | DH-WEH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Wooden Pallet |
| Delivery Time: | 25 days |
| Payment Terms: | TT |
| Supply Ability: | 20 units /month |
|
Detail Information |
|||
| Material: | PP, PP/SMS/PP+PE/breathable Film | Aplication: | Hospital, Medical, Surgial Use |
|---|---|---|---|
| Product Size: | Adjustable | Feeding Type: | Automatic Tension Control |
| Name: | Automatic Disposable Non Woven Surgical Apron Protective Colthing Making Machine | Machine Frame: | Aluminium Alloy |
| Control System: | Servo Motor Control, Touch Screen | Cuff Type: | Automatic With Elastic |
Product Description

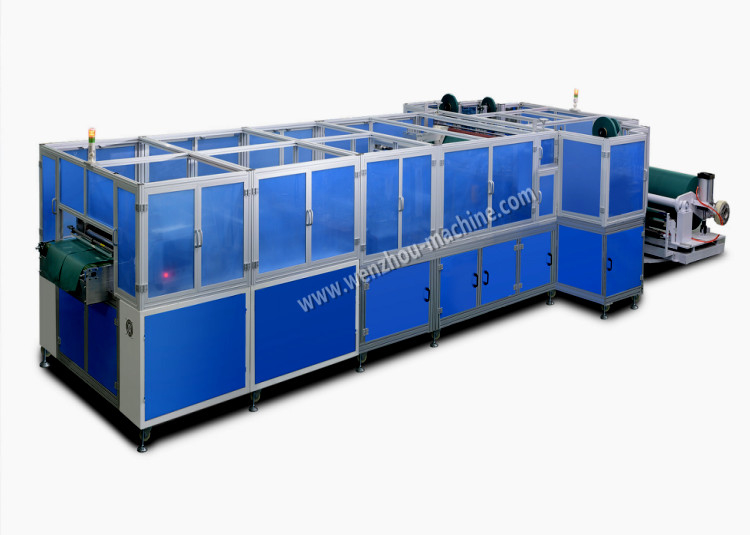

This machine is a machine for the production of non-woven surgical gowns, using ultrasonic fusion technology, from raw material feeding, forming welding, forming cutting; to finished product output; total count; full automation.
Mechanical characteristics:
1. The frame adopts I-beam structure, and the machine and parts adopt aluminum alloy structure, which is beautiful and firm without rust;
2. With photoelectric detection and automatic counting functions;
3. Constant tension control of raw materials;
Three, the production process:
1. Raw material specifications: roll diameter is 1000MM (please confirm), weight is 50KG (please confirm).
2. Production process: importing raw materials, forming welding and cutting, and injection of finished products.
| Model | DH-WEH |
| Speed | 15-20pcs/min |
| Voltage | 380V,50hz |
| Power | 20kw |
| Net weight | 5000kg |
| Machine dimension | 8000*2100*2500mm (L*W*H) |
| Product Size |
adjustable |
| Samples |
| Applications |
