Hot Sale Automatic Four Side Seal Horizontal Flow Wrapper for Solid Products
Product Details:
| Place of Origin: | China |
| Brand Name: | RT |
| Certification: | CE |
| Model Number: | HD-S450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Wooden Pallet /wooden case |
| Delivery Time: | 15-30 days |
| Payment Terms: | TT |
| Supply Ability: | 200 units /month |
|
Detail Information |
|||
| Application: | Face Mask,capsicum Plaster,cooling Gel Patch,menstrual Cramp Relief Patch,motion Sickness Patch,diarrhea Patch,nasal Strips,steam Eye Mask | Style: | Horizontal 4 Side Seal |
|---|---|---|---|
| Material: | Stainless Steel | Production Capacity: | 30-120 Packets/min(according To Products) |
Product Description
|

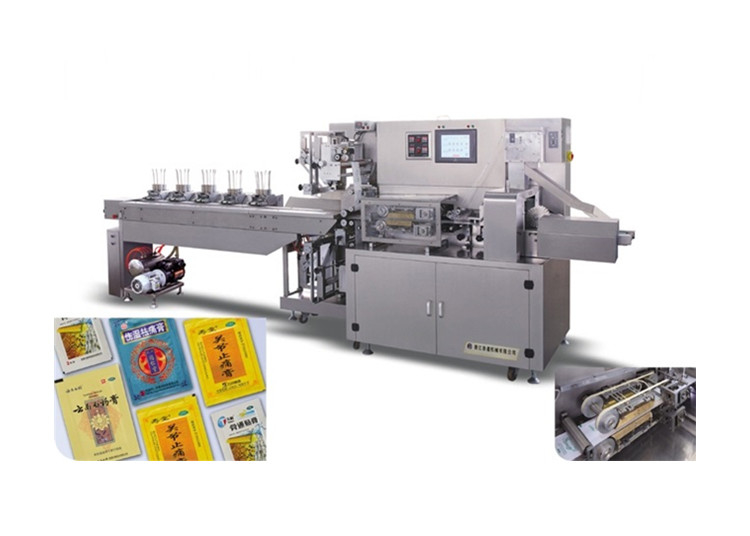

AUTOMATIC FOUR SIDE SEAL HORIZONTAL FLOW WRAPPER |
|
 |
|
|
This horizontal four side seal packing machine can pack flat solid products in pouches with four side seal. Such as medical strips- medical plaster, pain relief patches, cooling sheet, mosquito repellent patches, cannula fixator etc.
|
- Tension of material is controlled automatically and mechanically.
- It can be adjusted by hand-wheel when positioning of product needs to be corrected.
- Plaster can be packed for one single piece or a number of pieces.
- Suitable for use on one single roll of packing paper for positioning the correct printing both on front and back side of the packing paper to fit in with each other.
- Process of packing plus edge cutting can highly elevate the quality of finished product after packing.
- Positioned cutting can be done by detecting the printing mark on packing paper sensed by photoelectric.
- Machine will automatically stop as soon as running out of material is detected by auto sensor and the machine will warning when there is no product.(optional)
- Machine designed in horizontal position to facilitate the operating for production. It is easy to change for making different specification of products and so is it to do the regular maintenance.
| Model | GSB-220 |
| Production capacity | 30-120 packets/min(according to products) |
| Packing size | L 60-220mm, W 60-180mm, H 1-10mm |
| Compressed air | ≥0.1m³/min |
| Power Supply | AC380V 50Hz (three phase) |
| Total power | 7KW |
| Weight | 1200kg |
| Overall dimensions | Length x width x height 5000x2020x1630 mm |
