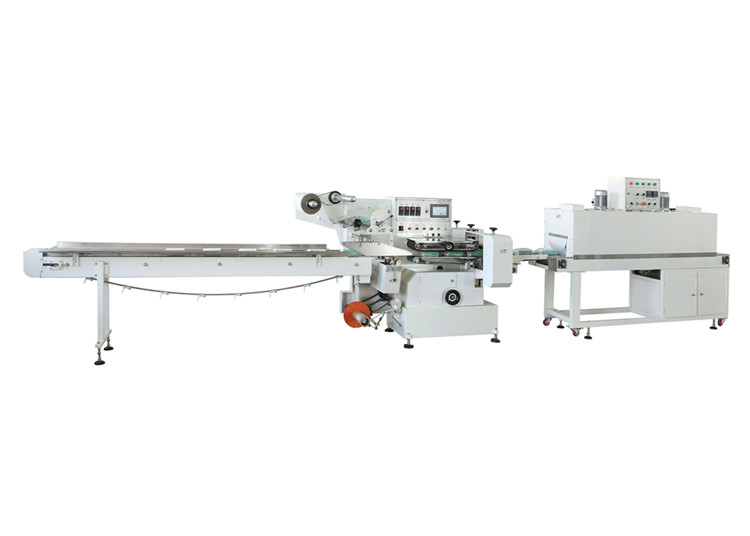

High Speed Flow Pack Shrink Wrapping Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | RT |
| Certification: | CE |
| Model Number: | GSB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Wooden Pallet /wooden case |
| Delivery Time: | 15-30 days |
| Payment Terms: | TT |
| Supply Ability: | 200 units /month |
|
Detail Information |
Product Description
|
High Speed Flow Pack Shrink Wrapping Machine |
|
|
This machine is suitable for shrink pack of different kinds of products, such as food, pharmaceutical, beverage packaging group, bowl, tea, mosquito coils, wallpaper, exercise books, filters, electrical switches, all kinds of stationery, industrial parts and cosmetics products, etc.
1) Suitable for individual or group packing.
2) Anti-cut safety device, protect the product from damaging when packaging
3) Included waste collection device, which make the package more perfect and make film material more effective.
4) Color touch screen control system, easy operation. The PLC control system make this machine stable performance, reliable, low failure rate. Bag length, speed and temperature can be individually adjusted, easy to operate and accurate.
5) Date printer is available for your optional choice.
6) With motor brake control device make it more sensitive.
7) Heat tunnel efficient dual temperature zones, efficient hot air circulation, and automatic temperature control, ensure the shrink quality.
| Model | GSB-590 |
| Max. film width | ≤590(mm) |
| Bag length | 120-530mm |
| Product width (mm) | 30-200mm |
| Product height (mm) | 50-130mm |
| Packing speed | 30-150 bags/min |
| Film material | POF, PE etc. |
| Power | 3.6(KW)+16.5(KW) |
| Power supply | Main machine 220V, 50HZ; Shrink machine 380V,50HZ |
| Machine size(LxWxH) |
Main machine 5000×1105×1750 Shrink machine 2500×600×1700 |
| Machine weight | Shrink machine: 700KG |
