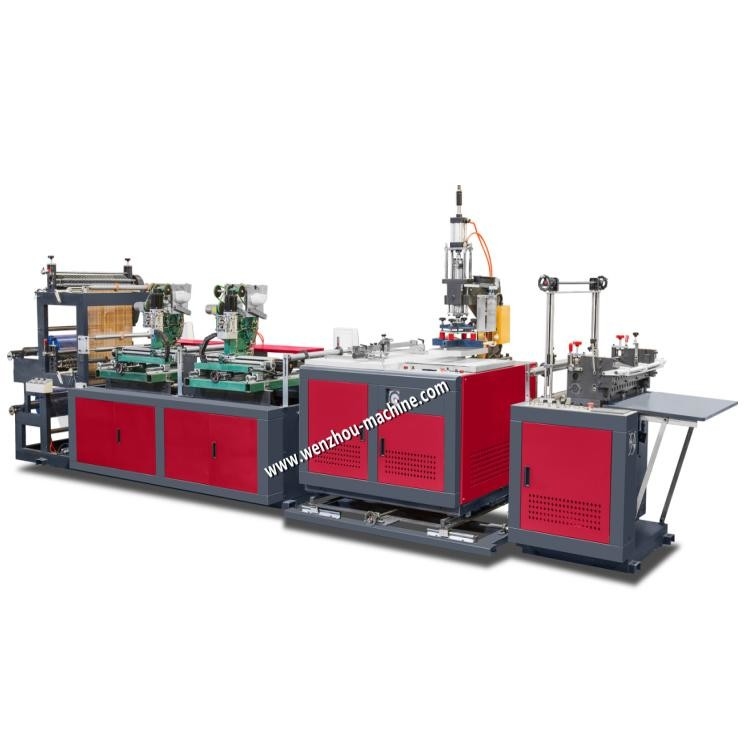

Fully Automatic High Frequency PVC Bag Making Machine With Snap Button
Product Details:
| Place of Origin: | China |
| Brand Name: | RT |
| Certification: | CE |
| Model Number: | RT-G5NK |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | Wooden Pallet /wooden case |
| Delivery Time: | 15-30 days |
| Payment Terms: | TT |
| Supply Ability: | 200 units /month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Condition: | New |
|---|---|---|---|
| Packaging Type: | Bags | Packaging Material: | Plastic PVC |
| Driven Type: | Electric | Warranty: | 1 Year |
| Machine Dimensions: | 5.6m*1.4m*1.7m | Material: | PE, |
| Power Supply: | 380V, 50Hz | Sealing Type: | High Frequency |
Product Description
|
Fully Automatic High Frequency PVC Bag Making Machine With Snap Button |
|
 |
|
|

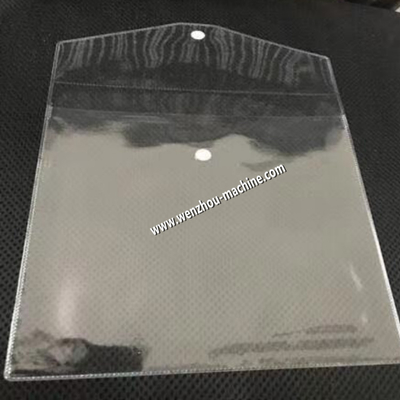

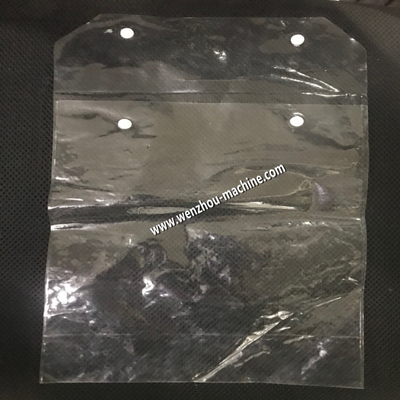

This is the type of machine specially customized and made for online automatic PVC bag with button attaching at one time at same machine.
|
|
Model |
RT-G5NK |
|
Snap button unit |
25-70 strokes/minute |
|
High Frequency Output |
5kw |
|
PVC Thickness |
0.03-0.27mm |
|
Production speed |
25-55 pieces/min |
|
Oscillation Frequency |
27.12MHZ |
|
Power Voltage |
3Phase 380v |
|
Max Input |
6kva |
|
Oscillation Tube |
7T85RB |
|
Rectifier Tube |
HVP20 |
|
Down Electron Polar Size |
650x600mm |
|
Max. Mold Size |
450*500mm |
|
Machine Weight |
1850kg |
|
Machine Size |
8630*1450*2200mm |
